CNC雕刻机Specification

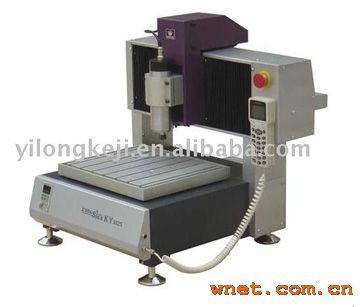

Model    KY3025
X.Y axis motion    300mm (X)x 250mm (Y)
Z axis motion    60mm
Table size(X/Y)    330mm (X)X280mm (Y)
Max.Moving speed    4m /min
Max.Engraving speed    3.0m /min
Resolution    0.005mm
Repeat resolution    0.05mm
Max.feeding height    75mm
Processor    DSP/frequency 100MHZ
Interface    USB1.1
Buffer size    32MB
Command System    HP-GL/G-Code
Computer OS    Windows98/2000/XP
Power supply    AC220V / AC110V
Power consumption(exclude spindle)    500W
DC brushless spindle with frequency inverter    400W
Collets    3.175mm
Spindle rotary speed    0 to 24000 rpm
External Dimension    600mm (W)x 600mm (D)x 560mm (H)
Weight    55kg(machine),84kg(packaged)
Packaged Size    670mm(W) X 670mm(D) X 720mm (H)
Operating Temperature and humidity    5 to 35 °C / 35 to 70% (non-condensing)
