Congratulations on your purchase of thin TFT high resolution LCD monitor. Before installing the monitor please carefully read these instructions and keep them for future reference.
CAUTIONS
1．The driver must not be able to view an operational monitor while driving the vehicle. This is illegal in most states. Check with your local law enforcement offcials for details.
2．Always check polarity when connecting wire to avoid damage to the unit and/or vehicle.
3．Do not open the housing of the monitor, Servicing must be done at our factory by authorized technicians to maintain the warranty.
SPECIFICATION
●Type：TFTLCD●Audio：stereo sound, Built-in IR transmitter
●Display size：12”●System：PAL/NTSC（Auto switching between the two systems
●Power supply：DC 12V
●Video：Dual video input●Pixel：800（H）×RGB×600（W）=1440000

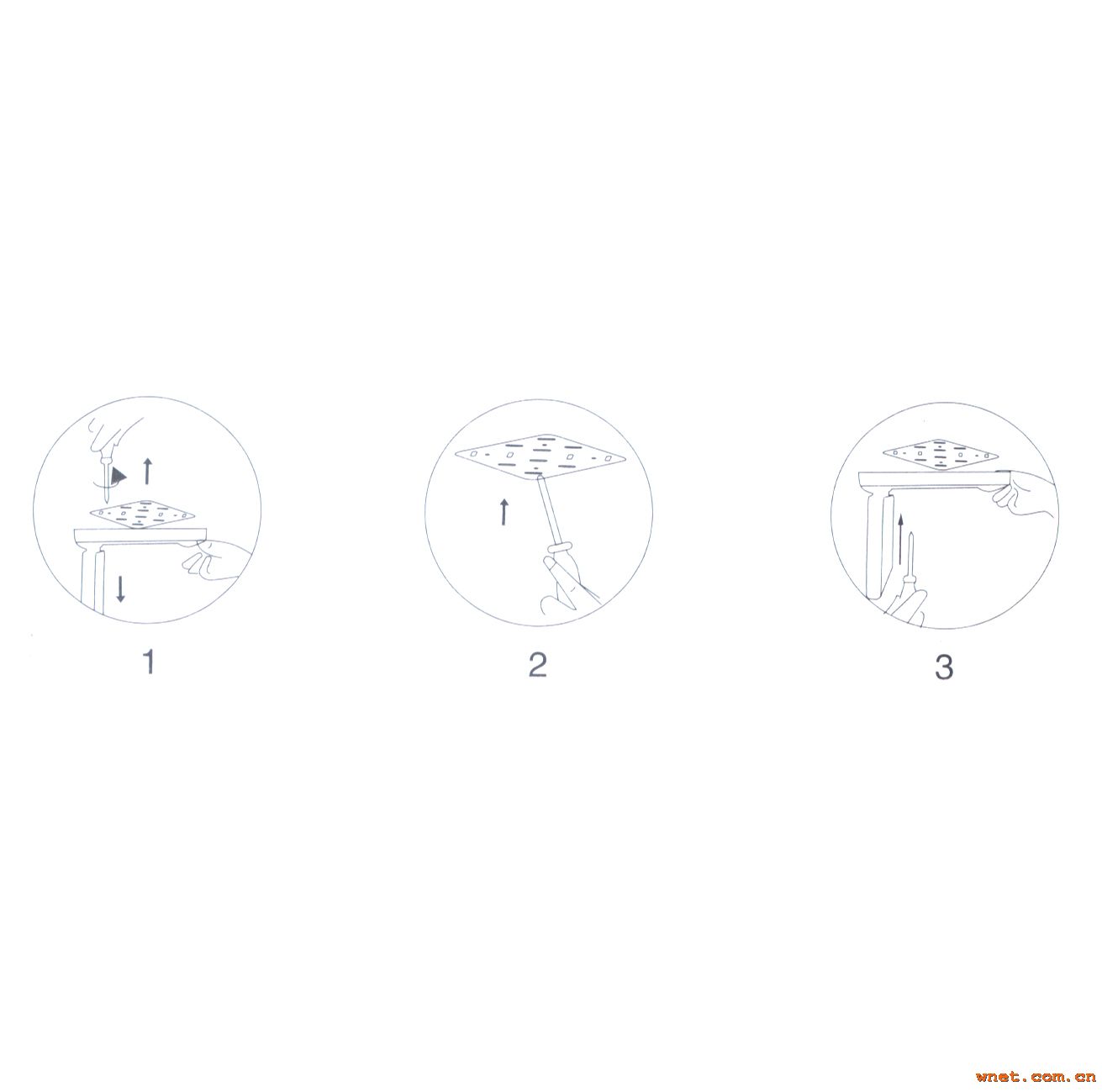

Monitor lnstallation
1．First Of all, unscrew the four screws on the mounting plate connected to the unit and take off mounting plate.
2．Fixup the mounting plate on the suitable position of the vehicle with four screws.
3．Then install the unit with four screws on the mounting plate to fix the unit.
